| Place of Origin: | China |
|---|---|
| ब्रांड नाम: | BAXIT |
| Model Number: | BXT-EDS9800T/BXT-EDS8800T/BXT-EDS9800/BXT-EDS8800 |
| Minimum Order Quantity: | 1 |
| मूल्य: | US $5826.0 - 38842.0 / Unit |
| Packaging Details: | Carton box/Wooden box |
| Delivery Time: | 5-8 Work days |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 1000pcs |
| Model: | BXT-EDS5800T | Analysis range: | 0.01%～99.99% |
|---|---|---|---|
| Measurement accuracy: | ±0.05% | Camera: | High-definition camera |
| प्रमुखता देना: | LCD display gold tester,digital penetration hardness tester,precious metal verification tool |
||

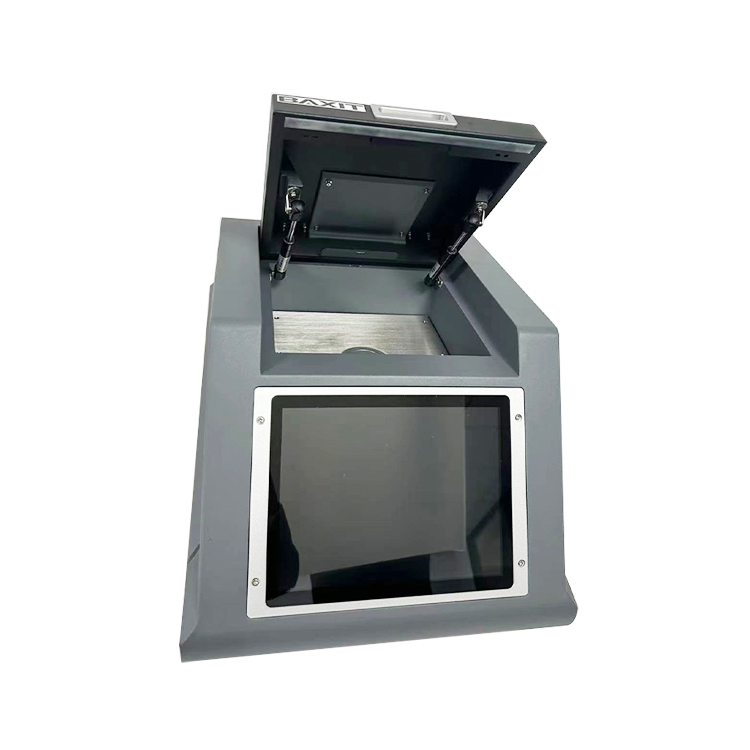

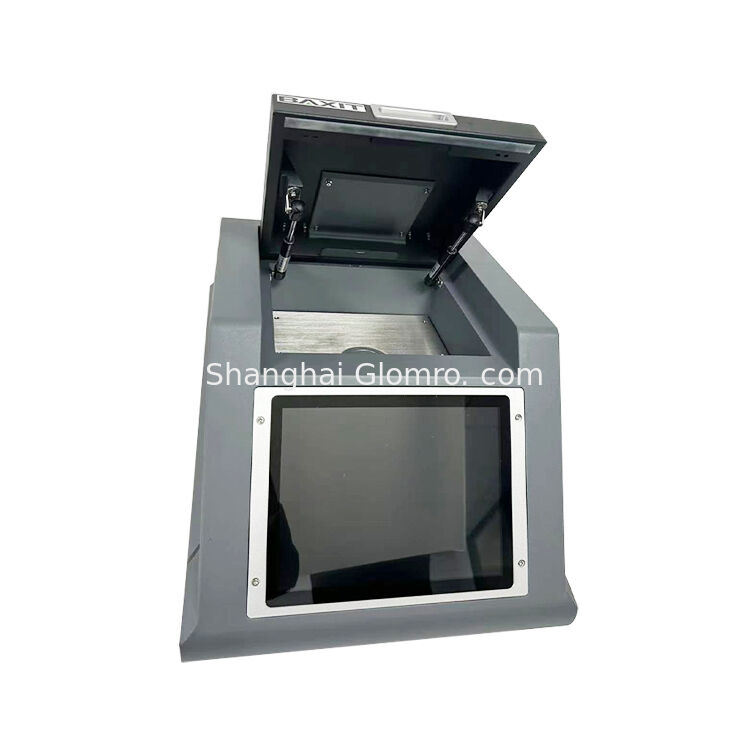

Gold Tester
X-ray Fluorescence (XRF) Spectrometer is a precision testing instrument integrating cutting-edge spectral analysis technology and industrial application design. Based on the principle of X-ray fluorescence analysis, it realizes rapid and accurate qualitative and quantitative detection of element composition in various substances. Integrating core technologies from multiple phases of national scientific and technological research and development as well as nearly 25 years of industry application experience, the instrument, relying on its high sensitivity, wide adaptability and safe and reliable performance, is widely used in electronic manufacturing, material metallurgy, environmental monitoring and other fields, providing authoritative data support for hazardous substance control and material composition analysis.
Supports switching of multiple functional modules such as multi-element analysis and coating thickness detection. The software can be upgraded for free. Equipped with a complete data management system, it supports spectrum comparison (domestically unique), tracking of supplier material changes, and customizable remote data management solutions. The report output format is flexible and diverse.
Technical Specifications
| Model | BXT-EDS9800T | BXT-EDS8800T | BXT-EDS9800 | BXT-EDS8800 | BXT-EDS7700 |
| Analysis range | ppm～99.99% | ||||
| Measurement accuracy | ±0.01% | ±0.03% | |||
| Test form | Solid, powder, liquid | ||||
| Light tube voltage | 5KV～50KV | ||||
| High-voltage power supply | 0～50KV | ||||
| Light tube flow | 0uA～1000uA | ||||
| Camera | High-definition camera | ||||
| Filter | Multiple customizable switching options available | ||||
| Detector | SDD | Si-PIN | |||
| Resolution | 135±5eV | 145±5eV | / | ||
| Multistage Analyzer | KEYRAY-DMCP | ||||
| Sample chamber dimensions(mm) | 310*270*90 | 310*270*80 | 310*270*90 | 310*270*80 | 310*270*90 |
| Test time | 3～60S | ||||
| Measured elements | From sodium (Na) to uranium (U), among 82 elements (excluding the light elements) | ||||
| Analysis software | KEYRAY-FP Qualitative and Quantitative Analysis Software | ||||
| External dimensions(mm) | 480*440*368 | 460*390*360 | 480*440*368 | 460*390*360 | 450*400*390 |
| Weight | 36kg | 38kg | 36kg | 38kg | 36kg |
| Environmental temperature | 5～38℃ | 5～30℃ | |||
| Relative humidity | 15%～90% | 15%～85% | |||
| Power supply | AC220V±5V,50/60Hz No high-power electromagnetic or vibration interference sources nearby | ||||
| Model | BXT-EDS6000T | BXT-EDS5800PLUS | BXT-EDS5800T | BXT-EDS3900C | BXT-RAY3000 |
| Analysis range | ppm～99.99% | 0.01%～99.99% | |||
| Measurement accuracy | 0.05% | ±0.05% | 0.07% | ±0.1% | |
| Test form | Solid, powder, liquid | ||||
| Light tube voltage | 5KV~50KV | ||||
| High-voltage power supply | 0~50KV | ||||
| Light tube flow | 0 uA~ 1000 UA | ||||
| Camera | High-definition camera | ||||
| Detector | Novel Si-PIN Detector | Proportional Counter Detector | Novel Si-PIN Detector | Proportional Counter Detector | |
| Multistage Analyzer | KEYRAY-DMCP | Digital multi-channel | Multi-channel simulation | ||
| Sample chamber dimensions(mm) | 310*270*90 | 270 * 260 * 100 | 310* 270* 90 | 320 * 250 * 120 | 325*325*90 |
| Test time | 3~60S | 5~60S | |||
| Measured elements | 74 elements ranging from Potassium (K) to Uranium (U) (excluding light elements); 26 elements can be analyzed in a single run, including Gold (Au), Silver (Ag), Copper (Cu), Zinc (Zn), Nickel (Ni), Cadmium (Cd), Tin (Sn), Iron (Fe), Rhenium (Re), Tungsten (W), Ruthenium (Ru), Osmium (Os), Indium (In), Manganese (Mn), Rhodium (Rh), Platinum (Pt), Lead (Pb), Palladium (Pd), Cobalt (Co), Antimony (Sb), Chromium (Cr), Iridium (Ir), Germanium (Ge), Mercury (Hg), Titanium (Ti), and Molybdenum (Mo). | Detect 24 types of metals: gold, silver, copper, zinc, nickel, cadmium, tin, iron, rhenium, tungsten, ruthenium, osmium, indium, manganese, rhodium, platinum, lead, palladium, cobalt, antimony, chromium, iridium, germanium, mercury (rhenium > 5%, tungsten > 5%, iridium > 5%) | Gold(Au), silver(Ag), platinum(Pt), palladium(Pd), copper(Cu) | ||
| Analysis Software | KEYRAY-FP Qualitative and Quantitative Analysis Software | ||||
| External dimensions(mm) | 450*400*390 | 520 * 450 * 400 | 450 * 400 * 390 | 450 * 430 * 390 | 430*430*350 |
| Weight | 36kg | 38kg | 36kg | 36kg | 33kg |
| Environmental temperature | 5～30℃ | 5～38℃ | |||
| Relative humidity | 15%～85% | 15%～90% | |||
| Power supply | AC220V±5V,50/60Hz No high-power electromagnetic or vibration interference sources nearby | ||||
| Model | BXT-EDS3900 | BXT-EDS8800PLUS | BXT-EDS9900PLUS | BXT-RAY6000 |
| Analysis range | 0.01%~99.99 % | 0.005um~50um | 1ppm~99.99% | 0.01%6~99.99 % |
| Measurement accuracy | 士0.1% | 0.005um (Optimal Precision of Single-Layer Coating) |
0.015%ppm | 0.05% |
| Test form | Solid, powder, liquid | |||
| Light tube voltage | 5KV ~ 50KV | |||
| High-voltage power supply | 0 ~50KV | |||
| Light tube flow | 0 uA ~ 1000 uA | |||
| Camera | High-definition camera | |||
| Detector | Proportional counter detector | Si-PIN | Electrically Cooled SDD Detector | Novel Si-PIN Detector |
| Multistage Analyzer | Multi-channel simulation | Digital multi-channel | KEY-DMCP | Digital multi-channel |
| Sample chamber dimensions(mm) | 310*280*90 | 450*310*120 | 450*310*120 | 310*230*90 |
| Test time | 5~60S | 5~100S | 10~100S | 5~60S |
| Measured elements | Gold(Au), silver(Ag), platinum(Pt), palladium(Pd), copper(Cu) | Among the 82 elements ranging from Sodium (Na) to Uranium (U) (excluding light elements) | All elements ranging from Sodium (Na) to Uranium (U) | Among the 74 elements ranging from Potassium (K) to Uranium (U) (excluding light elements) |
| Analysis Software | KEYRAY Qualitative and Quantitative Analysis Software | KEYRAY-FP Qualitative and Quantitative Analysis Software | KEYRAY Qualitative and Quantitative Analysis Software | |
| External dimensions(mm) | 400*430*350 | 400*430*350 | 380*372*362 | 395-350*340 |
| Weight | 33kg | 46kg | 30kg | 25kg |
| Environmental temperature | 5～38℃ | -5°C ~ 40°C | 5～30℃ | |
| Relative humidity | 15%～90% | 15%～85% | ||
| Power supply | AC220V±5V,50/60Hz No high-power electromagnetic or vibration interference sources nearby | |||
Applicable scenarios
Product structure
FAQ
1. who are we?
We are based in Shanghai, China, start from 2017,sell to North America(20.00%),Western Europe(15.00%),South
America(10.00%),Oceania(10.00%),Northern Europe(10.00%),Eastern Europe(10.00%),South Asia(5.00%),Southern Europe(5.00%),Central
America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Differential Scanning Calorimeter, Thermogravimetric Analyzer, Differential Thermal Analyzer, Oxygen Bomb Calorimeter, Spot Cooler
4. why should you buy from us not from other suppliers?
We have 10 years of experience in design and development. The price preferential benefit There is a lot of goods in stock The
service is good
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,DDU,Express Delivery,DAF；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Credit Card,Western Union;
Language Spoken:English,Chinese
