| उत्पत्ति के प्लेस: | चीन |
|---|---|
| ब्रांड नाम: | GLOMRO |
| मॉडल संख्या: | जीएलओ-0.5-25/जीएलओ-0.5-40/जीएलओ-0.5-60/जीएलओ-1-25/जीएलओ-1-40/जीएलओ-1-60/जीएलओ-1-100/जीएलओ-1-120 |
| न्यूनतम आदेश मात्रा: | 1 |
| मूल्य: | US $3438 - 23725/unit |
| पैकेजिंग विवरण: | 0.4-0.6 एमपीए |
| प्रसव के समय: | 5-8 कार्य दिवस |
| भुगतान शर्तें: | एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन |
| आपूर्ति की क्षमता: | 1000 पीसी |
| प्रमुखता देना: | industrial high pressure homogenizer machine,liquid milk processing equipment,dairy cream homogenizer 1000L/H |
||
|---|---|---|---|

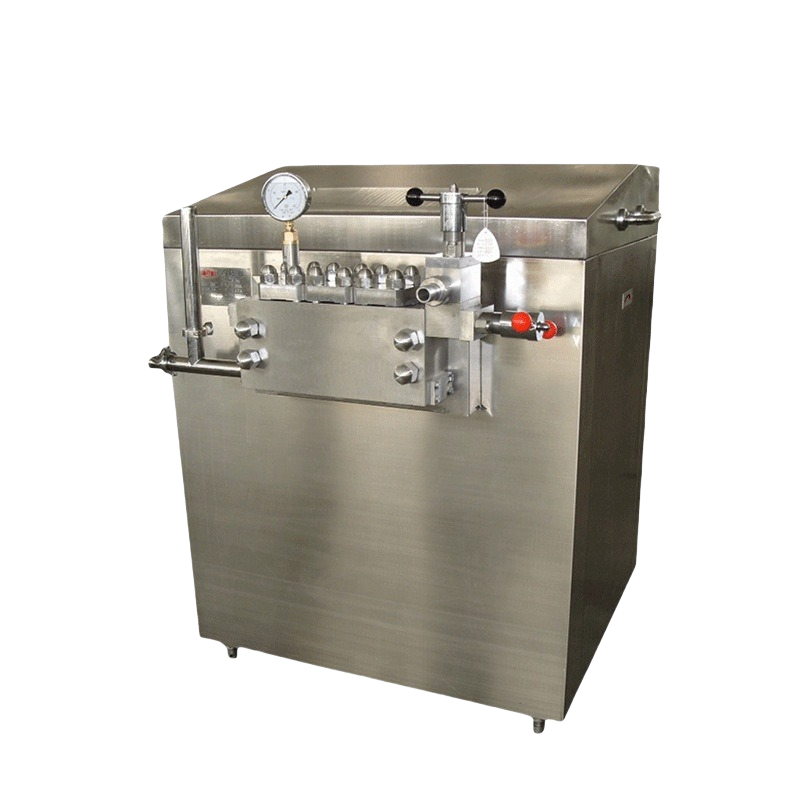

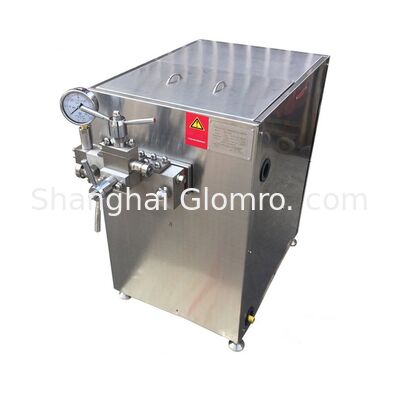

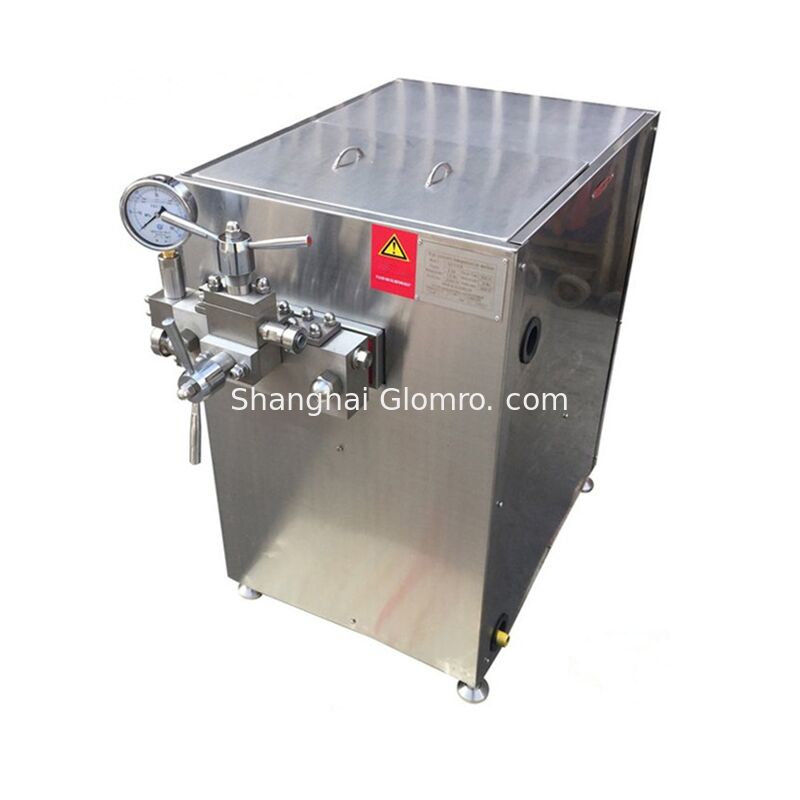

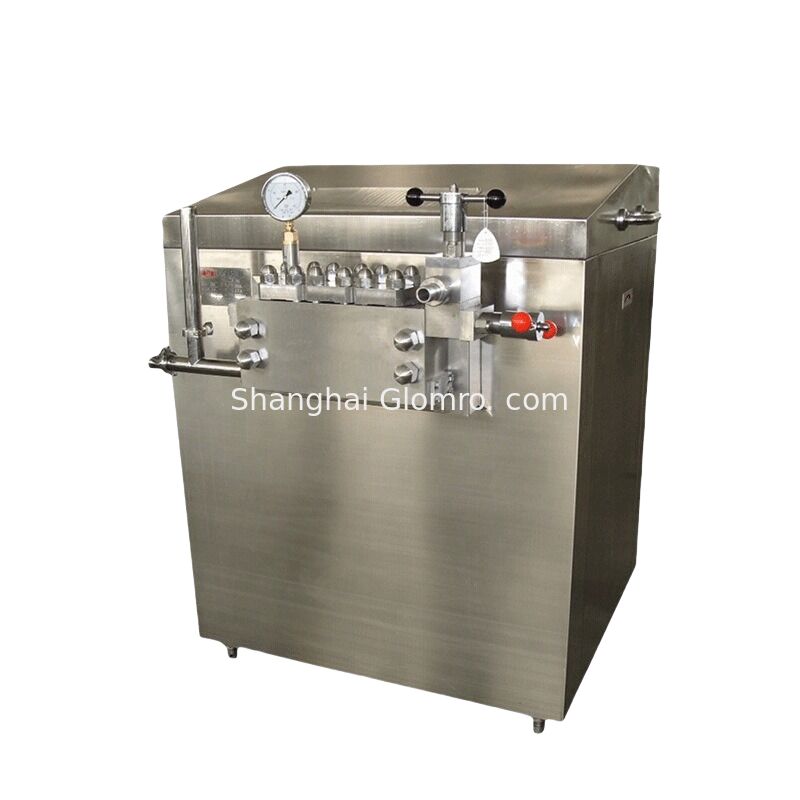

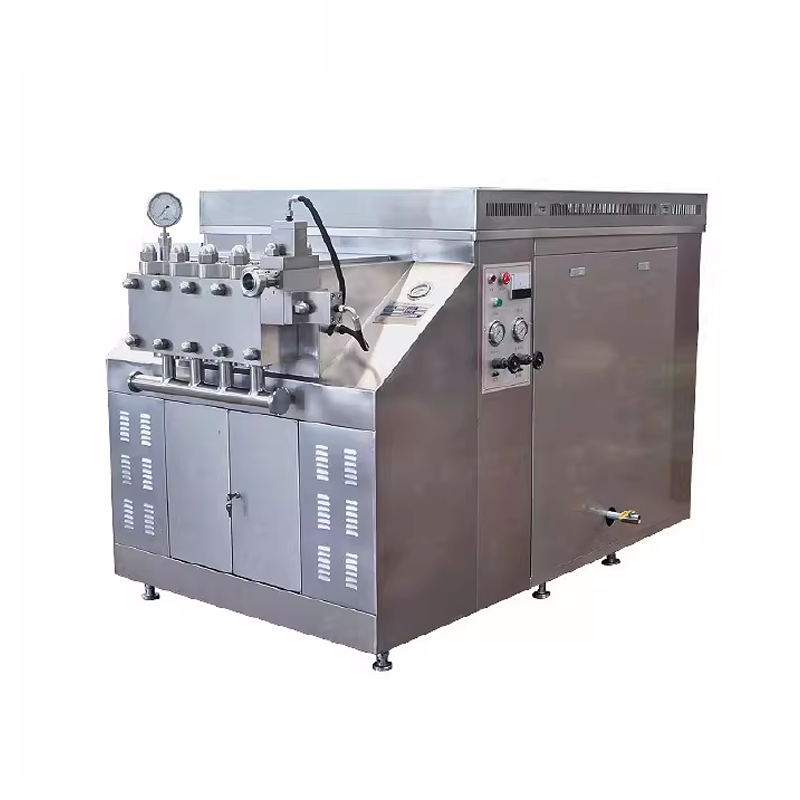

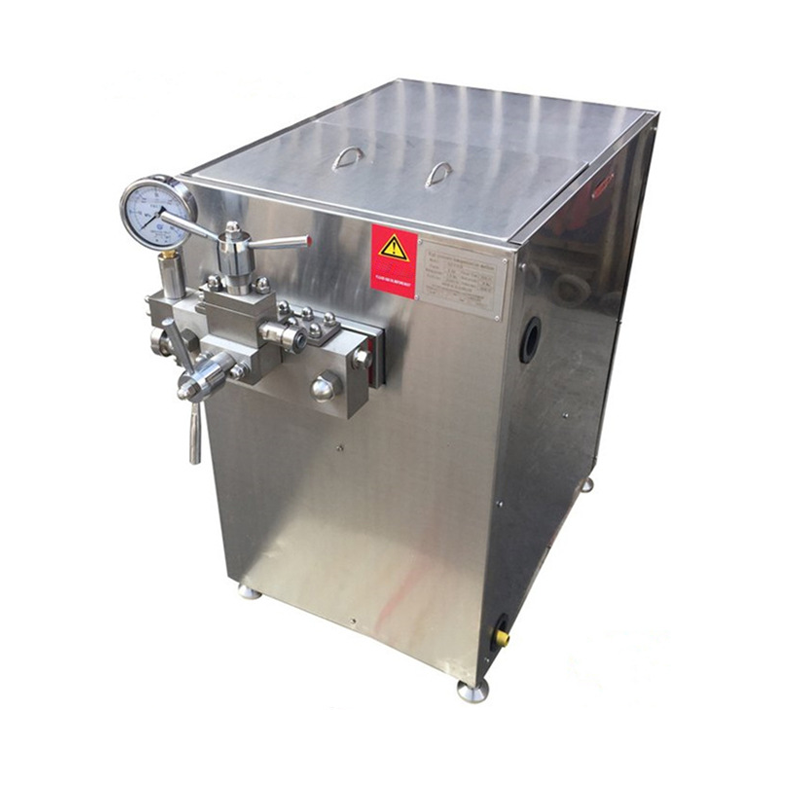

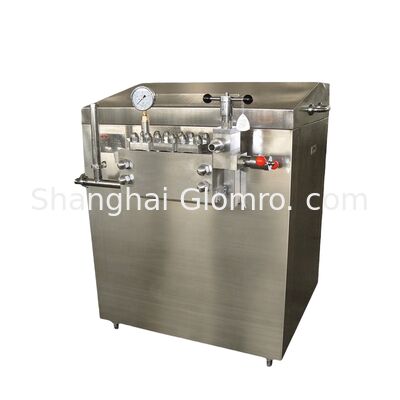

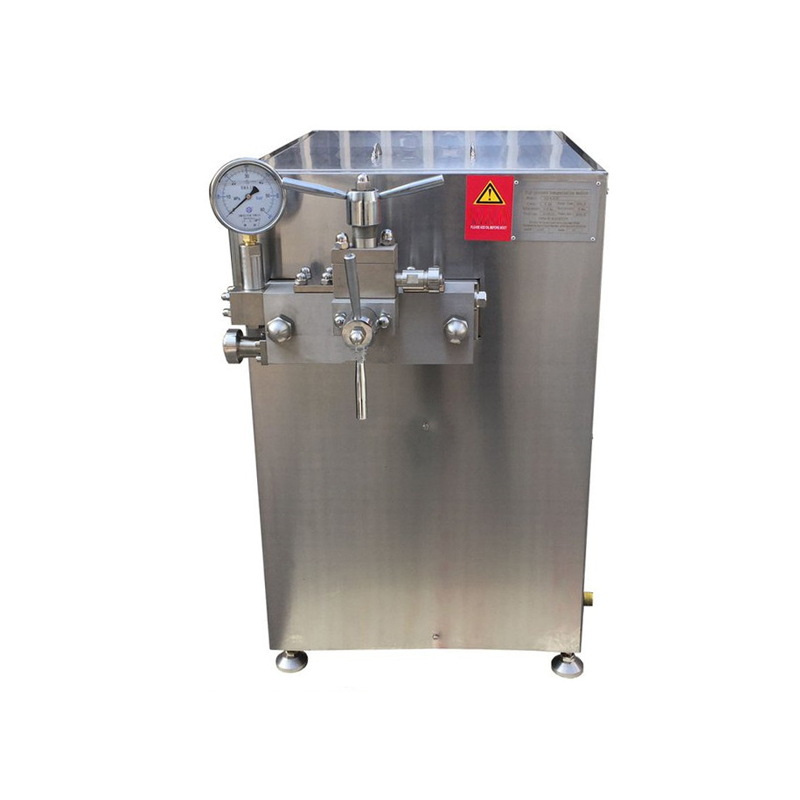

High-pressure Homogenizer
Product Overview:
High Pressure Homogenizer is a homogenization and emulsification equipment for fluid mixtures (liquid-liquid or liquid-solid phases). It is extensively applied in production, scientific research and technological development in fields such as food, dairy, beverage, pharmaceutical, fine chemical and biotechnology industries.
Working Principle:
It is mainly composed of a cabinet assembly, a pump assembly, a homogenizing assembly, a pressure display unit and other components. Driven by the motor through a V-belt, the drive shaft operates and further drives the plunger to conduct reciprocating motion via the connecting rod and slider mechanism. This allows the feed liquid in the pump to be continuously sucked in and discharged, generating extremely high pressure on the material. Under the combined action of shearing and grinding, high-intensity impact, pressure release and expansion, the feed liquid is effectively refined and mixed. The equipment boasts a novel structure, simple operation, convenient maintenance, safety and reliability.
When homogenizing materials such as milk, soy milk and other dairy products under high pressure, the high-pressure homogenizer can significantly refine the fat globules in the dairy liquid. This makes the finished products easier to digest and absorb after consumption, thereby improving their nutritional value.In the production of ice cream and other products, it can enhance the fineness and porosity of the feed liquid, remarkably elevating their internal quality. For the manufacturing of emulsions, colloids, fruit juices and other materials, it can prevent or reduce feed liquid stratification and improve the appearance of the liquid, delivering a brighter color, richer fragrance and mellower taste.After being refined by this equipment, the feed liquid can be made into powder products through spray drying equipment, making this machine a core equipment in powder production.
| Model | Flow(L/h) | Greatest pressure (Mpa) | Preset pressure (Mpa) | Power (Kw) | Weight (kg) | Dimensions (mm) |
| GLO-0.5-25 | 500 | 25 | 20 | 5.5 | 450 | 1040*760*980 |
| GLO-0.5-40 | 40 | 35 | 7.5 | 470 | 1040*760*980 | |
| GLO-0.5-60 | 60 | 50 | 11 | 630 | 1080*860*1100 | |
| GLO-1-25 | 1000 | 25 | 20 | 7.5 | 470 | 1040*760*980 |
| GLO-1-40 | 40 | 35 | 15 | 685 | 1080*860*1100 | |
| GLO-1-60 | 60 | 50 | 22 | 1370 | 1350*975*1450 | |
| GLO-1-100 | 100 | 80 | 37 | 2110 | 1490*1220*1520 | |
| GLO-1-120 | 120 | 100 | 37 | 1900 | 1450*1220*1480 |
FAQ
1. who are we?
We are based in Shanghai, China, start from 2017,sell to North America(20.00%),Western Europe(15.00%),South
America(10.00%),Oceania(10.00%),Northern Europe(10.00%),Eastern Europe(10.00%),South Asia(5.00%),Southern Europe(5.00%),Central
America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Differential Scanning Calorimeter, Thermogravimetric Analyzer, Differential Thermal Analyzer, Oxygen Bomb Calorimeter, Spot Cooler
4. why should you buy from us not from other suppliers?
We have 10 years of experience in design and development. The price preferential benefit There is a lot of goods in stock The
service is good
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,DDU,Express Delivery,DAF；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Credit Card,Western Union;
Language Spoken:English,Chinese
